BAKER M 620 LG L2 10B REFRIGERATOR

Refrigerators
C

Baker M 610 LG L2 10B - Retarder/Storage Right hand hinged reversible door with lock, dry cooling, rapid thaw, 10 sets of adjustable trayslides (40 x 60 cm) Temperature range: -5 / +12°C Volume gross: 583 ltr Exterior / Interior: White / ABS lining in grey

Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali

Preserving Quality

Both storage and process cabinets come with built-in functionalities that preserve the quality of your bakery products at all times.



Low Running Costs

The energy-efficient refrigeration technology implemented in this wide line-up of storage cabinets can help saving running costs on a day-to-day basis.



Built-in Safety

All BAKER Cabinets come with a controller equipped with safety functions: Door alarm, alarms for high-temperature levels, or when the cleaning of the condenser filter is required to avoid overheating. A top panel perfectly protects the controller from water splashes.



Multi-Functional

The SF can be used as a quick chiller/freezer, storage freezer, storage refrigerator, or thawing cabinet. If required, the GA can be also used continuously as a freezer, as a refrigerator, or as a prover.



Designed for Bakers

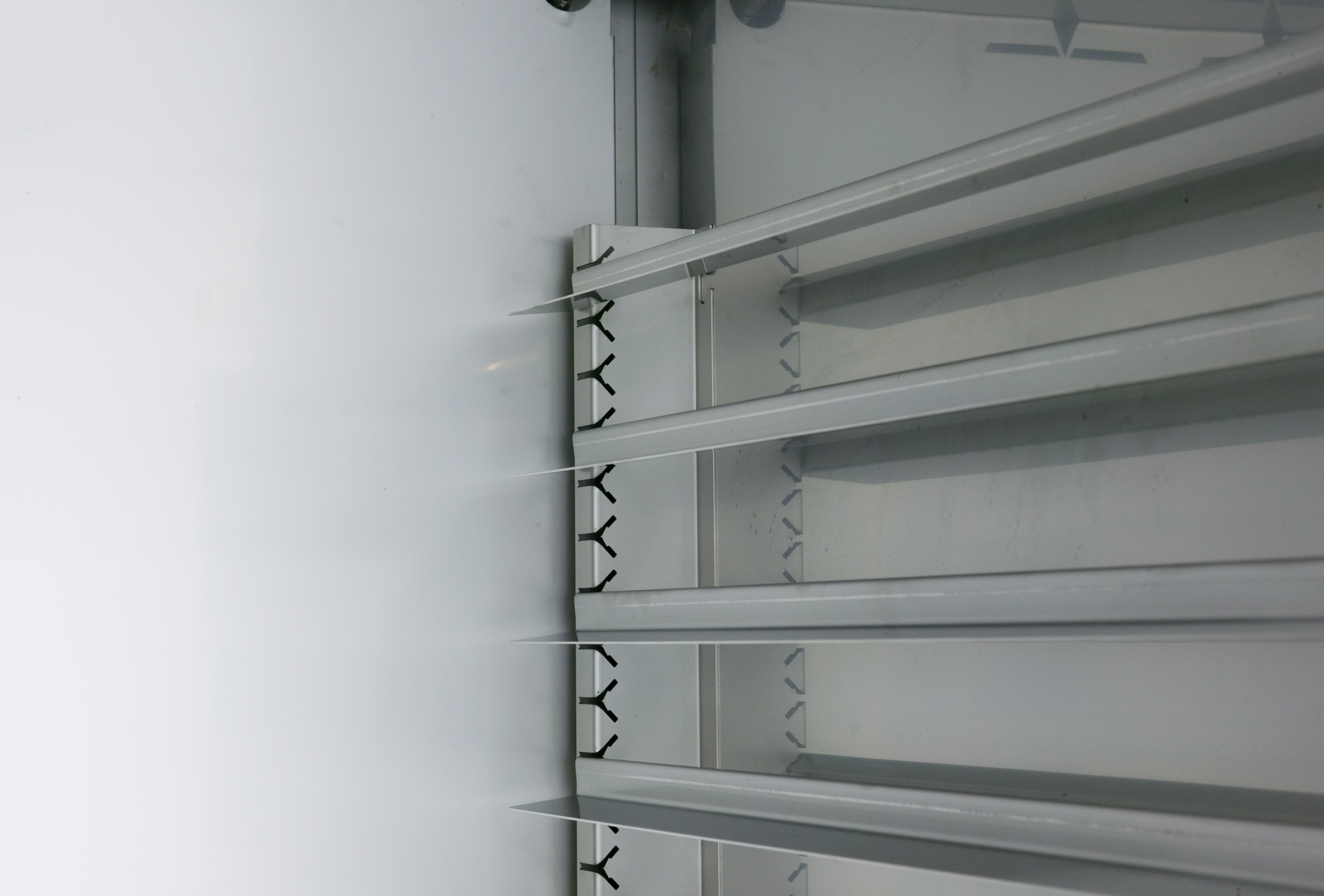

The GRAM BAKER series strikes with features, specifically designed for the requirements of bakery businesses. The cabinet meets standard bakery tray sizes and the support rails can be individually positioned.



The BAKER M 620 LG L2 10B comes with the following extras:

  • Right-hand hinged door with lock
  • Air circulation system
  • Dry cooling and controlled thawing (M versions)
  • Automatic defrost and reevaporation of water



Specifiche

Specifiche Value
Codice articolo 966230188
Modello BAKER M 620 LG L2 10B
Marchio Gram
Periodo di garanzia 5 anni di garanzia su parti di ricambio & manodopera
Titolo REFRIGERATOR
Equipaggiato con Porta reversibile cerniera lato destro con lucchetto, 10 coppie di griglie regolabili (40x60 cm), dry cooling. Esterno: Bianco. Interno: Rivestimento in ABS grigio.
Larghezza 695 mm
Profonditá 874 mm
Altezza inclusa le gambe (minimo) 2010 mm
Altezza inclusi le gambe (massimo) 2075 mm
Classe di efficienza energetica C
Indice di Efficienza Energetica (IEE) 45.13 EEI
Product availability -- Non disponibile
Classe climatica 5
Rivestimento esterno Bianco
Rivestimento interno ABS Lining Grey
Peso lordo 103 kg
Spessore isolamento 60 mm
Tipologia isolamento Cyclopentane
Piedini / Rotelle H = 125-200 mm (L)
Volume netto 318 l
Peso netto 103 kg
Alimentazione 230V, 50Hz
Livello rumorositá 45 dB
Intervallo di temperatura -5/+12°C
Volume lordo 580 l
Tipologia porta Solid Door
Capacitá di refrigerazione 413
Equivalente CO2 0.186 kg
GWP 3 GWP
Refrigerante 0.062 kg
Tipologia refrigerante R600a
SKU 966230188

Documentazione

Documentazione
Declaration of conformity Download
BAKER_M_620__B_.pdf Download
Instruction manual Download
765071984.pdf Download
