960700298

BAKER F 70 LCG L2 25A

Freezers
C

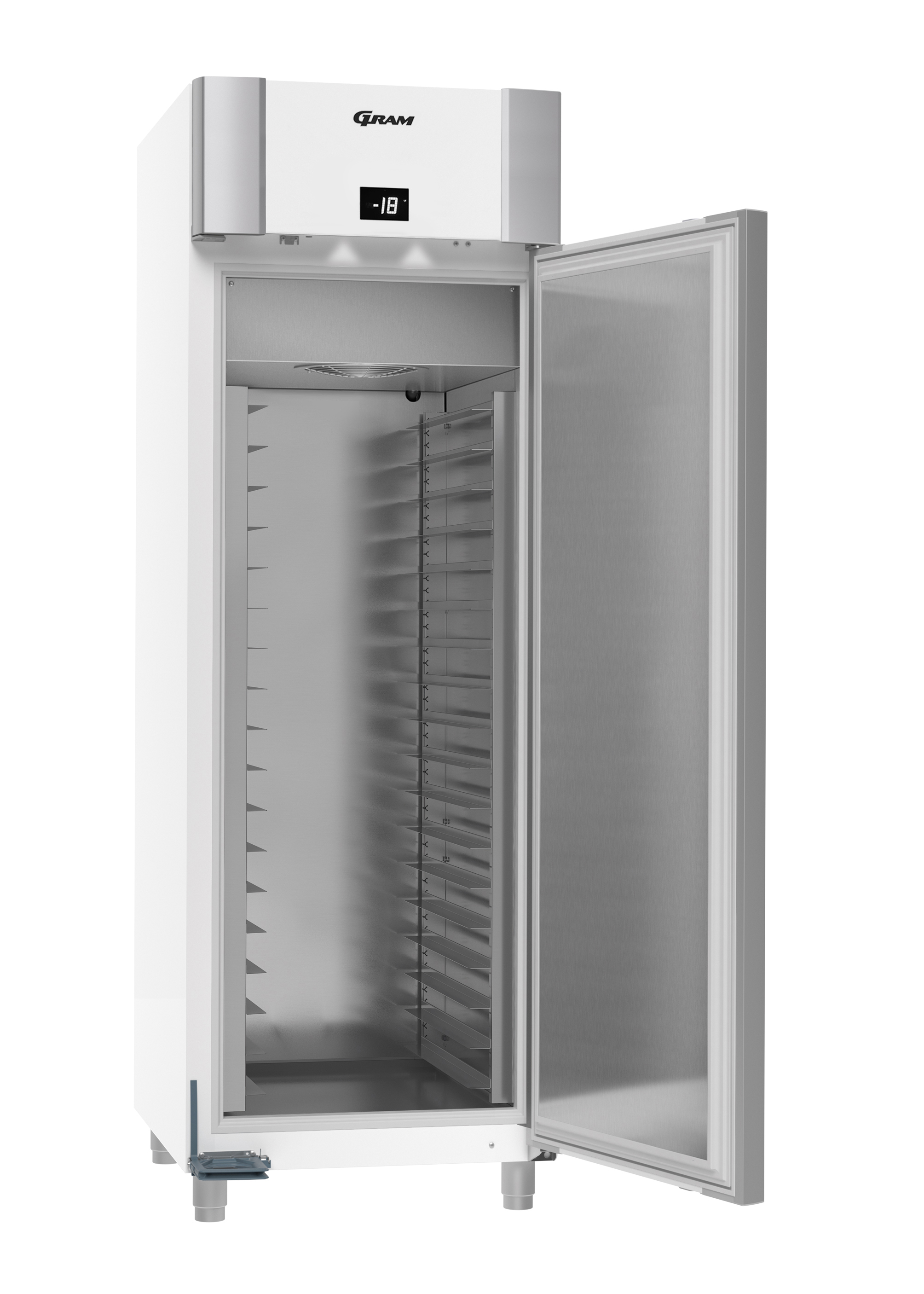

The GRAM BAKER F 70 LCG L2 25A  is a with a net internal volume of  383 Ltr.



Generations of bakeries, confectioners, and patisseries are trusting GRAM BAKER storage and process cabinets to accommodate their bakery products. The GRAM air circulation system is key to maintain correct and uniform temperatures inside the cabinet. The air is exhausted and refrigerated before being directed back into the cabinet, circulating around all food items. Thus, unwanted dehydration and skin forming of doughs can be avoided almost entirely.

Prodotto non disponibile
Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali

Preserving Quality

Both storage and process cabinets come with built-in functionalities that preserve the quality of your bakery products at all times.



Low Running Costs

The energy-efficient refrigeration technology implemented in this wide line-up of storage cabinets can help saving running costs on a day-to-day basis.



Built-in Safety

All BAKER Cabinets come with a controller equipped with safety functions: Door alarm, alarms for high-temperature levels, or when the cleaning of the condenser filter is required to avoid overheating. A top panel perfectly protects the controller from water splashes.



Designed for Bakers

The GRAM BAKER series strikes with features, specifically designed for the requirements of bakery businesses. The cabinet meets standard bakery tray sizes and the support rails can be individually positioned.



The BAKER F 70 LCG L2 25A comes with the following extras:

Right-hand hinged door with lock

Air circulation system

Dry cooling and controlled thawing (M versions)

Automatic defrost and reevaporation of water



Specifiche

Specifiche Value
Codice articolo 960700298
Modello BAKER F 70 LCG L2 25A
Marchio Gram
Periodo di garanzia 5 anni di garanzia su parti di ricambio & manodopera
Equipaggiato con Right hand hinged reversible door with lock, automatic door closing and pedal door opener, 25 pairs of adjustable trayslides (46x61 cm). LED light
Larghezza 700 mm
Profonditá 905 mm
Altezza 2125 mm
Consumo elettrico 1508 kWh
Classe di efficienza energetica C
Product availability -- Non disponibile
Valori di allacciamento 368 kW
Rivestimento esterno White finish
Rivestimento interno Stainless steel
Peso lordo 136 kg
Spessore isolamento 70 mm
Tipologia isolamento Cyclopentane
Piedini / Rotelle H = 135-200 mm (L)
Volume netto 383 l
Peso netto 136 kg
Alimentazione 230V, 50Hz
Livello rumorositá 47.3 dB
Intervallo di temperatura -25/-5°C
Volume lordo 610 l
Tipologia porta Solid Door
Capacitá di refrigerazione 490
Equivalente CO2 0.246 kg
GWP 3 GWP
Refrigerante 0.082 kg
Tipologia refrigerante R290
SKU 960700298

Documentazione

Documentazione
DWG files Download
Declaration of conformity Download
BAKER_PLUS_F_70_G_25A.pdf Download
Instruction manual Download
7464464.pdf Download
