966220296

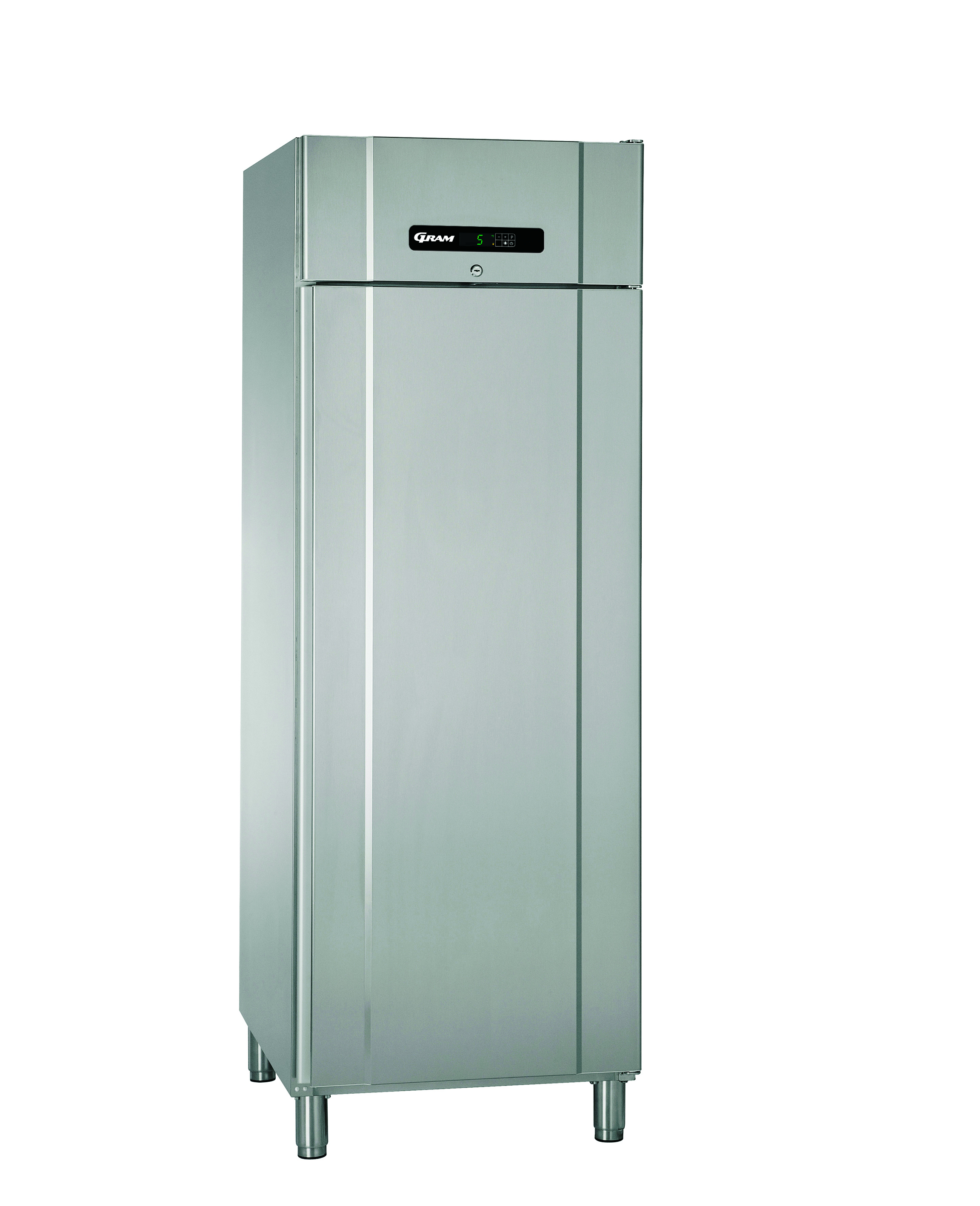

BAKER F 620 RG L2 10A FREEZER

Freezers
C

Equipped with: Right hand hinged reversible door with lock, 10 sets of adjustable trayslides (46x61 cm) Height: 2010 mm Volume, gross: 583 ltr. Interior/Exterior: Stainless/ABS lining in grey

Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali

Preserving Quality

Both storage and process cabinets come with built-in functionalities that preserve the quality of your bakery products at all times.



Low Running Costs

The energy-efficient refrigeration technology implemented in this wide line-up of storage cabinets can help saving running costs on a day-to-day basis.



Built-in Safety

All BAKER Cabinets come with a controller equipped with safety functions: Door alarm, alarms for high-temperature levels, or when the cleaning of the condenser filter is required to avoid overheating. A top panel perfectly protects the controller from water splashes.



Designed for Bakers

The GRAM BAKER series strikes with features, specifically designed for the requirements of bakery businesses. The cabinet meets standard bakery tray sizes and the support rails can be individually positioned.



The BAKER F 620 RG L2 10A comes with the following extras:

Right-hand hinged door with lock

Air circulation system

Dry cooling and controlled thawing (M versions)

Automatic defrost and reevaporation of water



Specifiche

Specifiche Value
Codice articolo 966220296
Modello BAKER F 620 RG L2 10A
Marchio Gram
Periodo di garanzia 5 anni di garanzia su parti di ricambio & manodopera
Titolo FREEZER

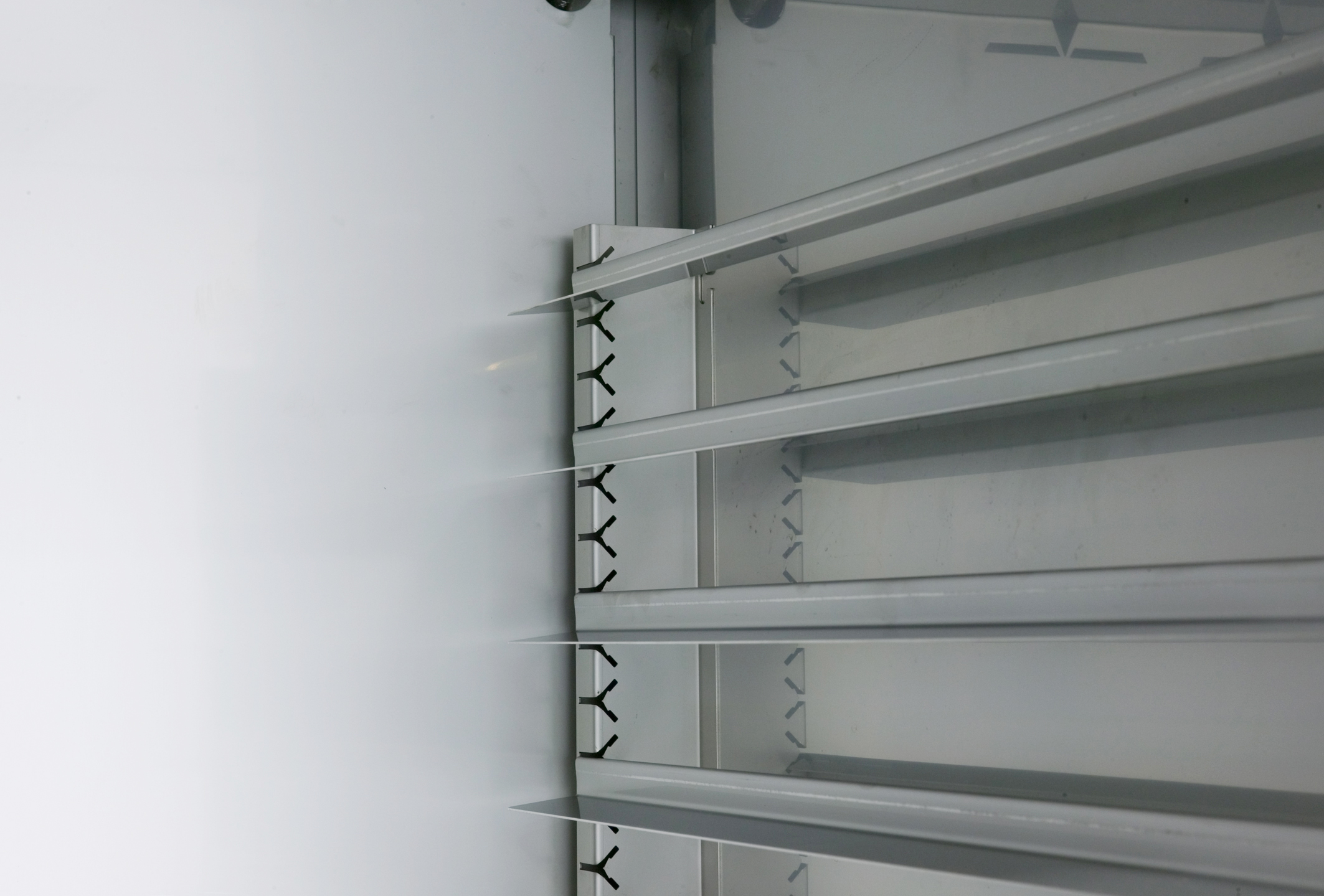

Equipaggiato con Right hand hinged reversible door with lock, 10 pairs of adjustable supports (46x61 cm)
Larghezza 695 mm
Profonditá 874 mm
Altezza inclusa le gambe (minimo) 2010 mm
Altezza inclusi le gambe (massimo) 2075 mm
Classe di efficienza energetica C
Indice di Efficienza Energetica (IEE) 48.78 EEI
Product availability -- Non disponibile
Classe climatica 5
Rivestimento esterno Acciaio Inox
Rivestimento interno ABS Lining Grey
Peso lordo 103 kg
Spessore isolamento 60 mm
Tipologia isolamento Cyclopentane

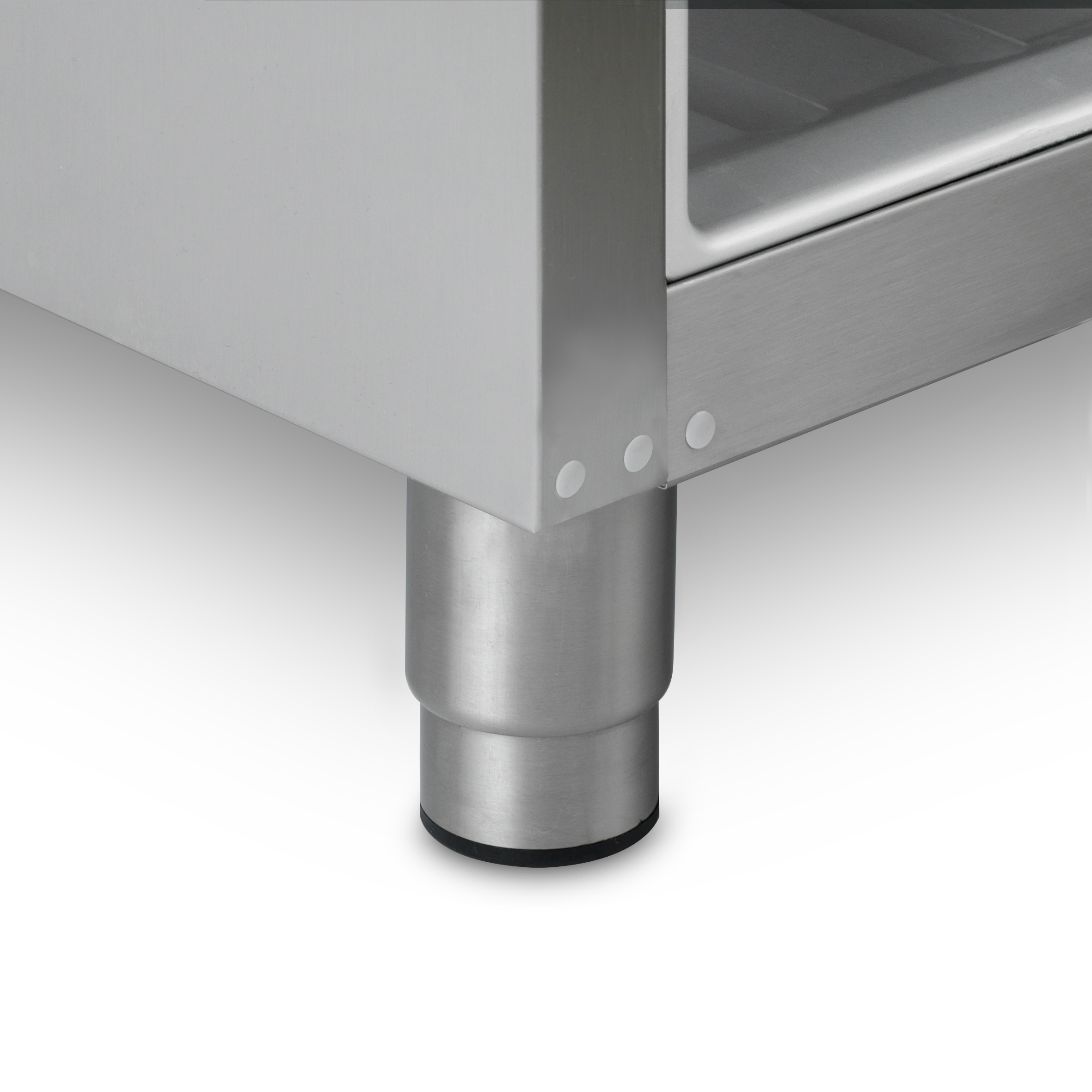

Piedini / Rotelle H = 125-200 mm (L)
Volume netto 358 l
Peso netto 103 kg
Alimentazione 230V, 50Hz
Livello rumorositá 46.4 dB
Intervallo di temperatura -25/-5°C
Volume lordo 580 l
Tipologia porta Solid Door
Capacitá di refrigerazione 502
Equivalente CO2 0.129 kg
GWP 3 GWP
Refrigerante 0.043 kg
Tipologia refrigerante R290
SKU 966220296

Documentazione

Documentazione
Declaration of conformity Download
BAKER_F_620__A_.pdf Download
Instruction manual Download
6762296.pdf Download
765071978.pdf Download
