Premier F W80 L DR Congélateur

Armoires Gastronomiques
C

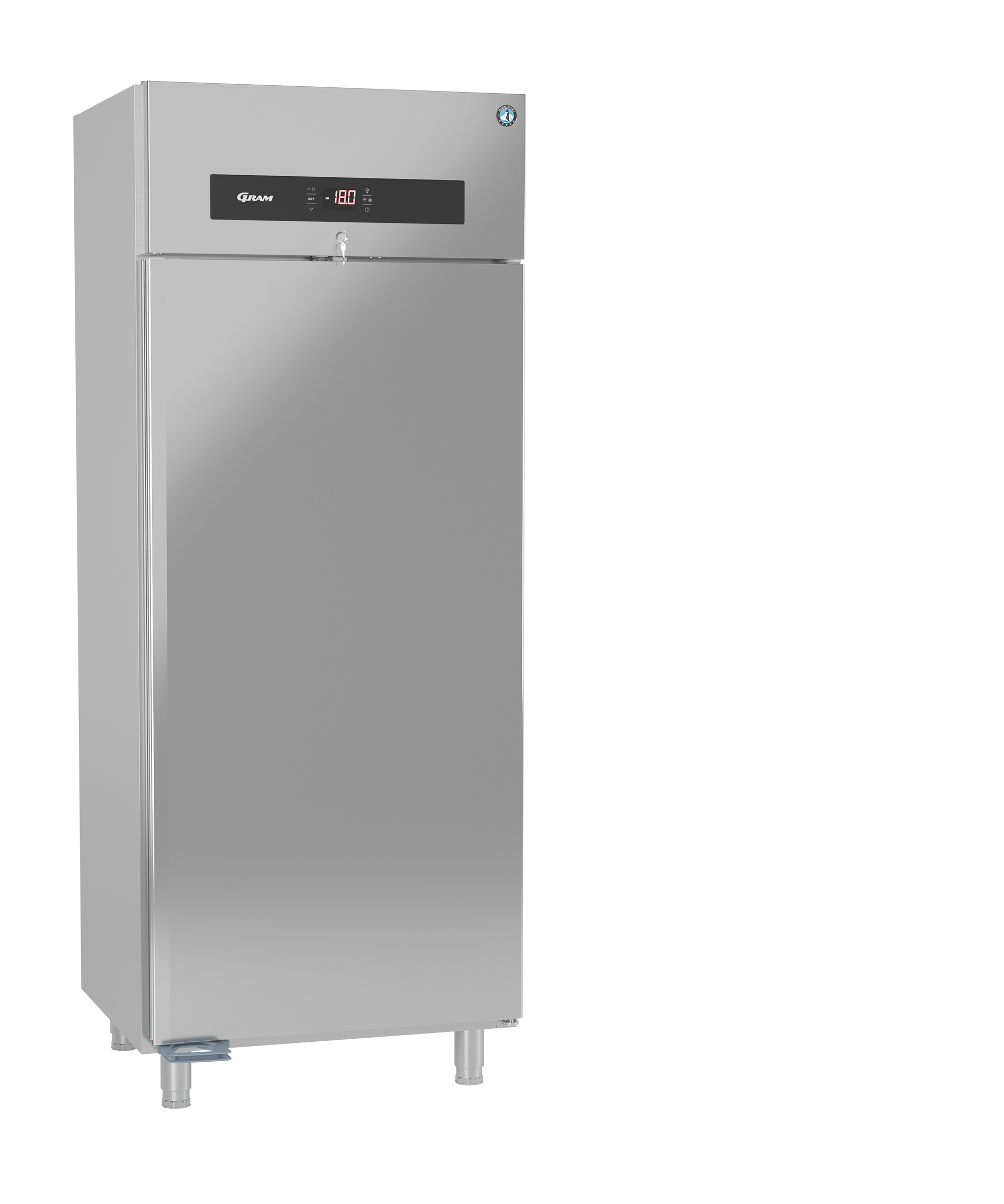

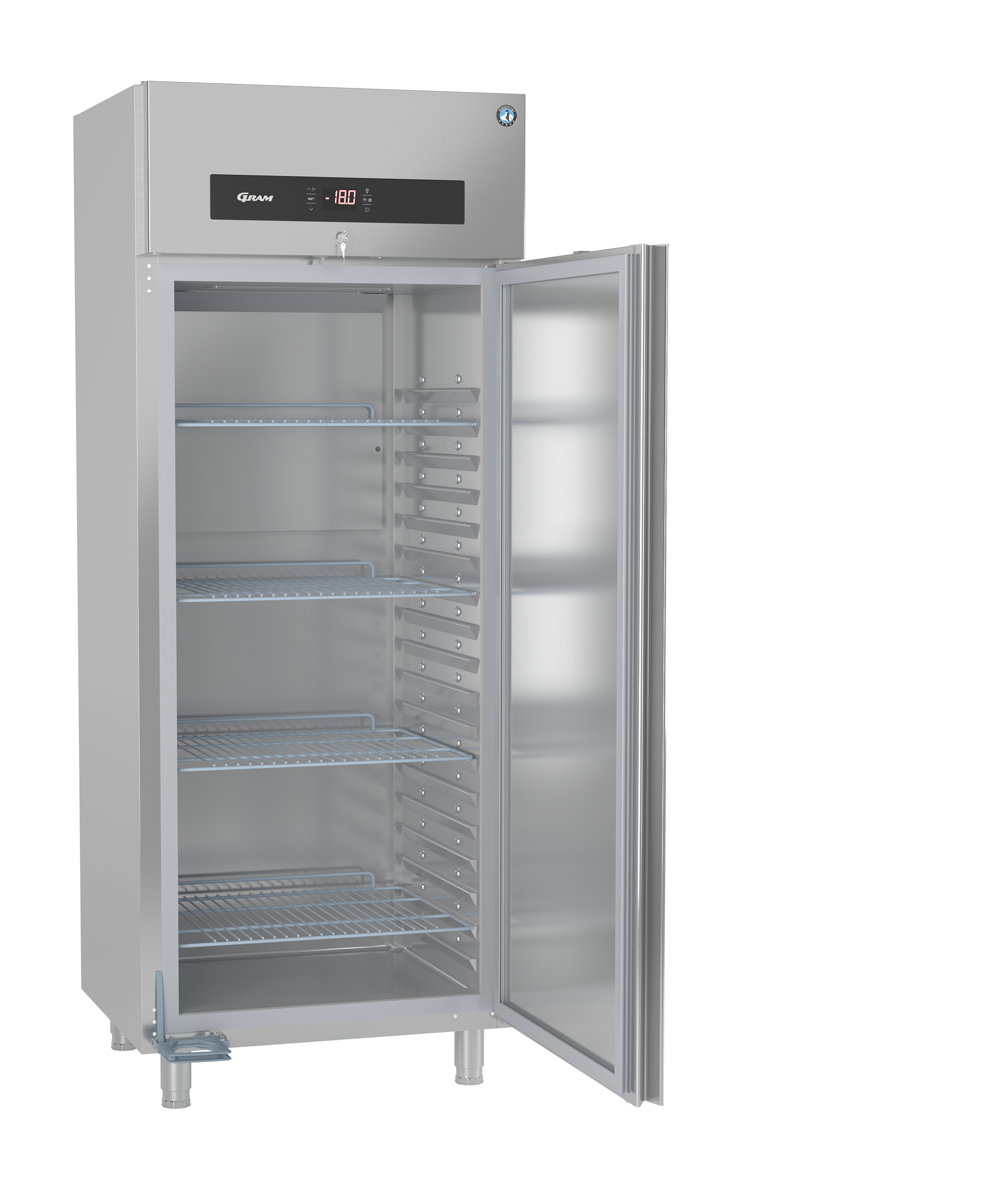

The Hoshizaki PREMIER is a series of heavy-duty cabinets for energy-efficient refrigeration (Climate Class 5 (max. ambient 40°C w/ 40% RH)), catering to the needs of gastronomic perfectionists. The durable design with solid door hinges, stabile stainless steel, and flawless finish is built to withstand the most demanding kitchen operations. The low-height PREMIER cabinets are customizable with castors instead of legs to easily fit into low-ceiling environments, yet convince with a surprisingly high internal volume. The Premier F W80 L DR is a Freezer with a net internal volume of 475 ltr. The dimensions are 810 x 728 x 2080-2130 mm.

Product not available
Obtenir un devis Voir la fiche technique

Specifications

Specification Value
Numéro d'article 173801010
Nom du modèle Premier F W80 L DR
Marque Hoshizaki
Période de garantie 6 ans
Titre Congélateur
équipée de Porte réversible ferrée à droite avec serrure, fermeture de porte automatique, pédale de porte débrayable, 4 grilles rilsanisées grises, éclairage LED
Largeur 810 mm
Profondeur 728 mm
Hauteur incluant les jambes (minimum) 2080 mm
Hauteur y compris les jambes (maximum) 2130 mm
Consommation électrique 1776 kWh
Classe d'efficacité énergétique C
Classe d'efficacité énergétique standard ISO 22041-2019
Indice d'Efficacité énergétique (IEE) 46.58 EEI
Nombre d'étagères 4
Nombre maximum d'étagères 18
Taille de l'étagère GN 2/1 en largeur
Product availability -- Not available
Classe climatique 5
Charge de connexion 520 kW
Extérieur Inox AISI 304
Intérieur Inox AISI 304
Poids brut 135 kg
Epaisseur de l'isolation 78 mm
Type d'isolation Polyurethane
Pieds / Roulettes H = 130-180 mm (L)
Volume net utile 475 l
Poids net 125 kg
Alimentation électrique 230V, 50Hz
Niveau sonore 50 dB
Plage de température -25/-5°C
Volume, brut 700 l
Volume, net 475 l
Type de porte Porte pleine
Type de produit Armoires
Capacité de réfrigération 376
Equivalent en CO2 0.255 kg
GWP 3 GWP
Réfrigérant 0.085 kg
Type de réfrigérant R290
SKU 173801010

Documentation

Documentation
DWG files Download
Declaration of conformity Download
EU_EL_PREMIER_F_W80.pdf Download
Instruction manual Download
Spec sheet Download
PREMIER_F_WIRING_DIAGRAM.pdf Download

Accessories

Accessory name Item number
Shelf (stainless steel) with back guard for GN 2/1 wide cabinet 760660438
Shelf (stainless steel) with back guard for GN 2/1 wide cabinet (bottom) 760660439
Shelf (grey) with back guard for GN 2/1 wide cabinets excl. shelf support (bottom) 760660443
Set of stainless steel shelves (3 top & 1 bottom) with back guard for GN 2/1 wide cabinets excl. shelf support 760660447
