173800030

Premier F BW80 DR U

Armoires Gastronomiques
C

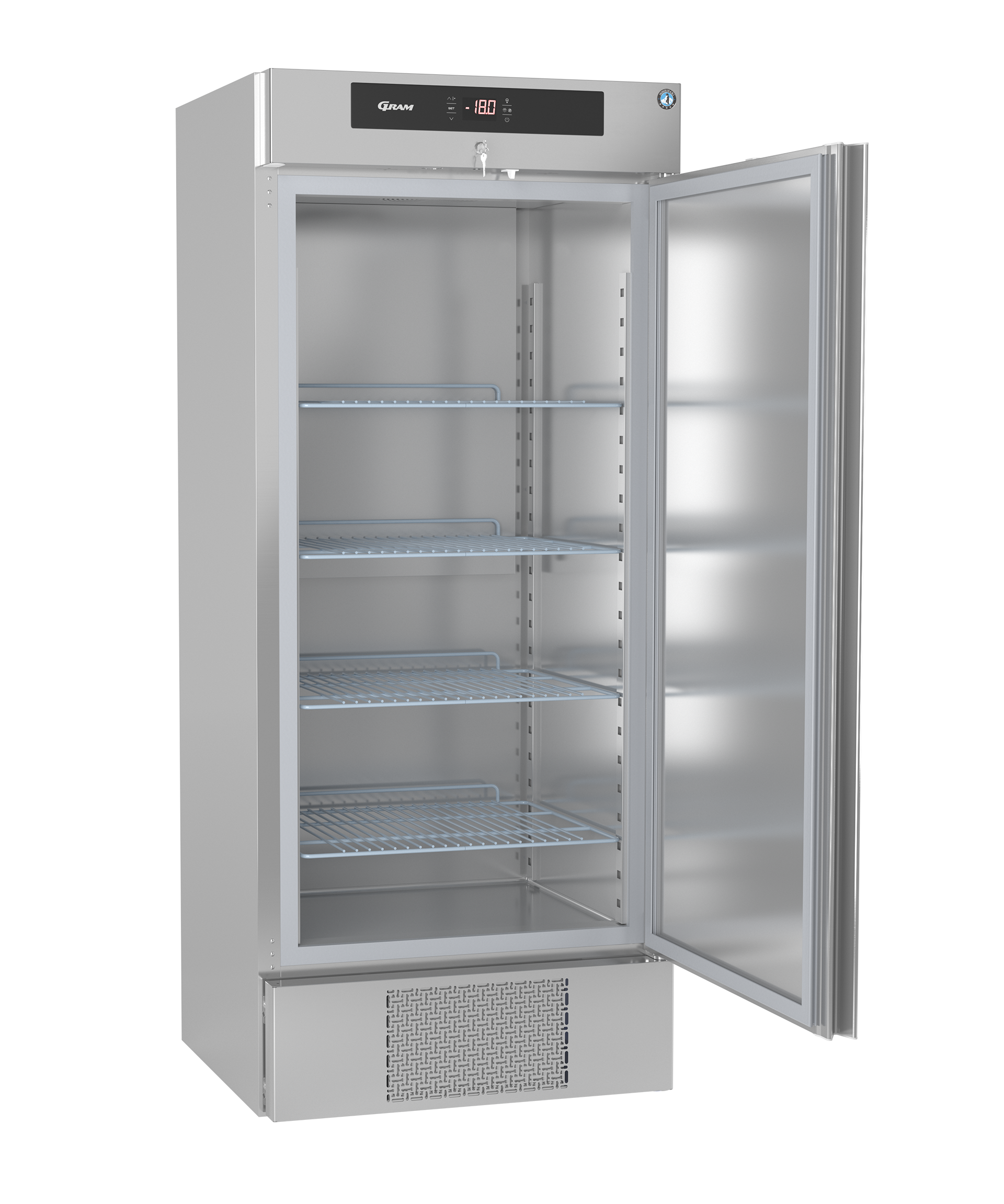

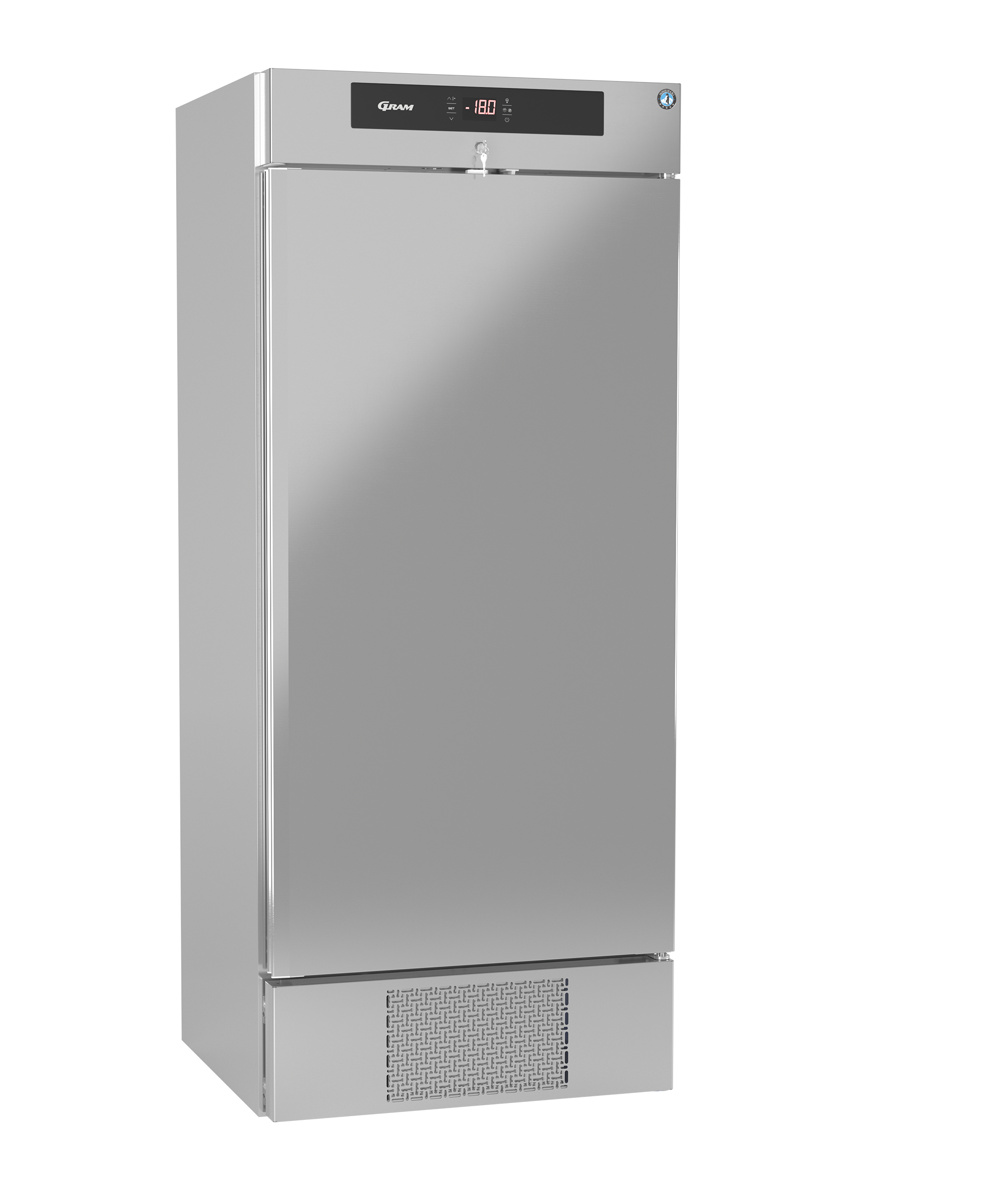

The Hoshizaki PREMIER is a series of heavy-duty cabinets for energy-efficient refrigeration (Climate Class 5 (max. ambient 40°C w/ 40% RH)), catering to the needs of gastronomic perfectionists. The durable design with solid door hinges, stabile stainless steel, and flawless finish is built to withstand the most demanding kitchen operations. The low-height PREMIER cabinets are customizable with castors instead of legs to easily fit into low-ceiling environments, yet convince with a surprisingly high internal volume. The Premier F BW80 DR U is a with a net internal volume of 457. The dimensions are 830 x 770 x 1970 mm.

Product not available
Obtenir un devis Voir la fiche technique

Key features

« FOOD SAFETY & TEMPERATURE STABILITY

The efficient air circulation system helps to maintain perfect storage temperatures and to recover the inside temperature rapidly after each door opening and defrosting. Additionally, the automatic defrost function ensures stable temperatures at all times. The wide, magnetic gaskets provide an effective seal and reduce escaping of cold air.



COMPARTMENTALIZED DESIGN The PREMIER’s condenser is positioned on top of the cabinet, which brings multiple advantages. The cabinets can be hosed down in one run, without risking electric shortcuts. As the evaporator is positioned on top of the cabinet, valuable space inside the cabinet can be used for storage. Additionally, it can easily be serviced via the front flap on top of the cabinet.



LOW RUNNING COSTS & SUSTAINABILITY

The energy-efficient refrigeration technology implemented in this broad line-up of storage cabinets can help save running costs on an everyday basis. The Premier F BW80 DR U runs on natural refrigerant and has [5].



ERGONOMIC & EASY TO USE

Extras, like the practical pedal-foot door opener, allow hands-free opening, contribute to a healthier work environment, and are a real-time-saver for hectic kitchen operations. The functional and intuitive display is easy to understand and use.



HYGIENE & WASTE REDUCTION

Thanks to the rounded corners, smooth surfaces, and molded rails, frequented cleaning routines become a quick and simple task. The practical anti-tilting function prevents spillage. The Interior and exterior are made of AISI 304 stainless steel and are perfectly suitable for humid locations.



EASY CUSTOMIZATION & FLEXIBILITY PREMIER

cabinets can easily be adjusted to your requirements, for example, the length of the legs, the position of the door, and the foot pedal. They also can accommodate shelves up to 18-22 levels (4 shelves included) offering you high flexibility to accommodate different types of produce. «

Specifications

Specification Value
Numéro d'article 173800030
Nom du modèle Premier F BW80 DR U
Période de garantie 6 ans
équipée de Right hand hinged reversible door with lock, automatic door closing, 4 grey shelves, LED lighting
Largeur 830 mm
Profondeur 770 mm
Hauteur 1970 mm
Consommation électrique 1810 kWh
Classe d'efficacité énergétique C
Classe d'efficacité énergétique standard ISO 22041-2019
Indice d'Efficacité énergétique (IEE) 48.6 EEI
Nombre d'étagères 4
Nombre maximum d'étagères 22
Taille de l'étagère GN 2/1 en largeur
Product availability -- Not available
Classe climatique 5
Charge de connexion 370 kW
Extérieur Inox AISI 304
Intérieur Inox AISI 304
Poids brut 145 kg
Epaisseur de l'isolation 78 mm
Type d'isolation Polyurethane
Volume net utile 457 l
Poids net 145 kg
Alimentation électrique 230V, 50Hz
Niveau sonore 50 dB
Plage de température -25/-5°C
Volume, brut 610 l
Volume, net 457 l
Type de porte Porte pleine
Type de produit Armoires
Capacité de réfrigération 376
Equivalent en CO2 0.18 kg
GWP 3 GWP
Réfrigérant 0.06 kg
Type de réfrigérant R290
SKU 173800030

Documentation

Documentation
DWG files Download
Instruction manual Download
Spec sheet Download
PREMIER_F_WIRING_DIAGRAM.pdf Download

Accessories

Accessory name Item number
760660438 760660438
760660448 760660448
