Advance K 140 C

C

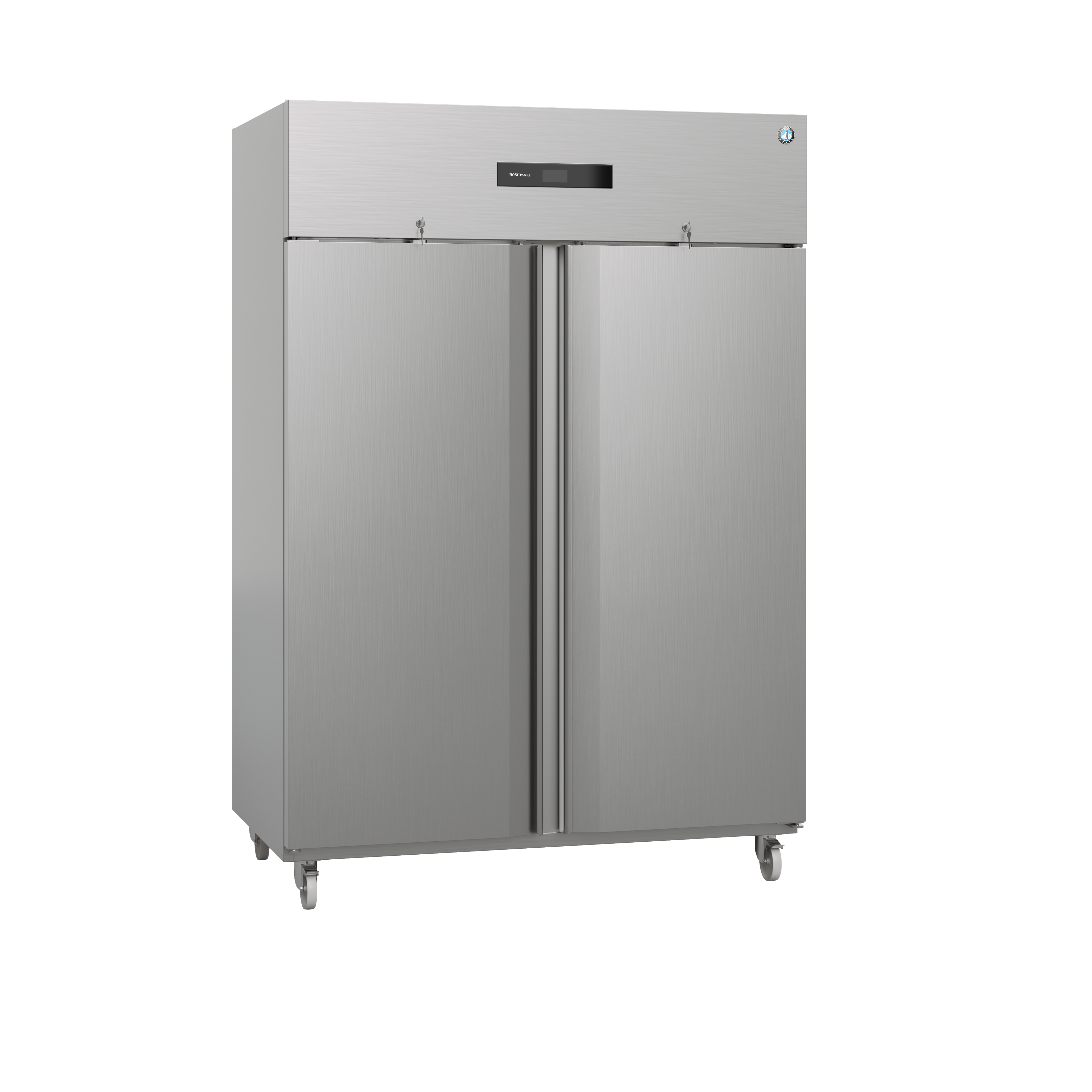

The Hoshizaki Advance K 140 C  is a with a net internal volume of  797 l.



This refrigerated counter not only meets rigorous kitchen demands but also boosts operational efficiency with its thoughtful design and durable construction.

Obtenir un devis Voir la fiche technique

Key features

Efficient Cooling

The climate class 5 system includes fan-assisted cooling to maintain optimal temperatures up to +40°C, ensuring food stays fresh, and features automatic defrost with re-evaporation of defrost water.



Hygienic Surfaces

Both interior and exterior are made of stainless steel, offering a robust, food-safe environment that is easy to clean and maintain.



User-Friendly Design

Features like reversible doors, anti-tilt shelves, and removable magnetic door gaskets with triple insulation facilitate seamless operation and maintenance, for a smooth kitchen workflow.



Convenient Extras

Includes a low-maintenance condenser, and a compact slide-out refrigeration unit for effortless servicing, reducing downtime and operational hassles.

Specifications

Specification Value
Numéro d'article 121142070
Nom du modèle Advance K 140 C
Marque Hoshizaki
Période de garantie 5 ans
Pays d'origine Turquie
équipée de One right and one left hand hinged door with lock, self closing doors, 8 grey shelves, LED lighting
Largeur 1344 mm
Profondeur 830 mm
Hauteur 1975 mm
Consommation électrique 926 kWh
Classe d'efficacité énergétique C
Classe d'efficacité énergétique standard ISO 22041-2019
Indice d'Efficacité énergétique (IEE) 48.32 EEI
Nombre d'étagères 8
Nombre maximum d'étagères 22 x 2, distance of 57 mm
Taille de l'étagère GN 2/1 en profondeur
Classe climatique 5
Charge de connexion 270 kW
Extérieur Inox AISI 304
Intérieur Inox AISI 304
Poids brut 192 kg
Epaisseur de l'isolation 60 mm
Type d'isolation Polyuréthane
Pieds / Roulettes H = 125 mm (C)
Volume net utile 797 l
Poids net 192 kg
Alimentation électrique 230V, 50Hz
Niveau sonore 52 dB
Plage de température 0/+10°C
Volume, brut 1200 l
Volume, net 797 l
Type de porte Porte pleine
Capacité de réfrigération 634
Equivalent en CO2 0.255 kg
GWP 3 GWP
Réfrigérant 0.085 kg
Type de réfrigérant R290
SKU 121142070

Documentation

Documentation
DWG files Download
Declaration of conformity Download
EU_EL_ADVANCE_K_140.pdf Download
Instruction manual Download
Cooling_Circuit_Diagram_for_Cabinet_of_Advance.pdf Download
Spec sheet Download
ADVANCE_K70_K140_Wiring_Diagram.pdf Download

Accessories

Accessory name Item number
Shelf (grey) with back guard for GN 2/1 cabinets excl. shelf support 760660009
Shelf (stainless steel) with back guard for GN 2/1 cabinets 760660013
Set of castors 125 mm (2 x braked and 2 x unbreaked) 760660022
Set of legs 130-180 mm                   760660118
Double door cabinet rail (left) GN 2/1, U-shape 760660243
Double door cabinet rail (right) GN 2/1, U-shape 760660244
Master key 760660430
Shelf (stainless steel) with back guard for GN 2/1 cabinets (bottom) 760660437
Shelf (grey) for GN 2/1 cabinets excl. shelf support (bottom) 760660442
Set of stainless steel shelves (6 top & 2 bottom) with back guard for GN 2/1 cabinets excl. shelf support (double door) 760660445
